Learn How To Design Magnetic Gearbox With Ansys Maxwell
Published 7/2025
MP4 | Video: h264, 1280x720 | Audio: AAC, 44.1 KHz, 2 Ch
Language: English | Duration: 2h 30m | Size: 1.98 GB
Electromagnetic design, Magnetic Gearbox, Magnetic Gears, finite element analysis, FEA, Ansys Maxwell, Permanent Magnets
What you'll learn
Understand magnetic gear concepts and how they differ from mechanical gears.
Design internal, external, and coaxial magnetic gearboxes from scratch.
Apply radial magnetization and set up magnet arrays correctly.
Use ANSYS Maxwell to model and simulate magnetic gear systems in 2D and 3D.
Calculate gear ratios based on pole pairs and modulator segments.

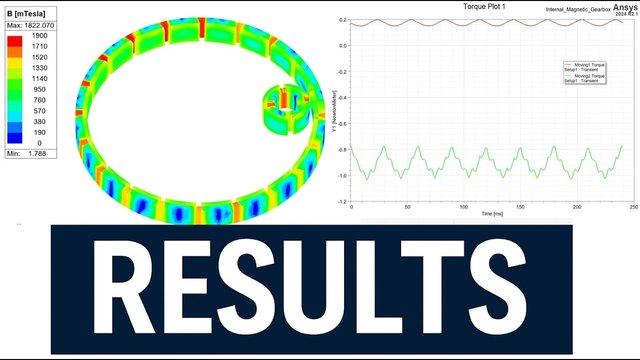

Analyze torque, magnetic field distribution, and performance curves.
Stay updated with the latest research and trends in magnetic gearbox technology.
Requirements
Basic understanding of electromagnetics and magnetic fields.
Fundamental knowledge of CAD or simulation tools is helpful but not mandatory.
Access to a computer capable of running ANSYS Maxwell.
Interest in magnetic systems, torque transmission, or non-contact gear technologies.
No prior experience in magnetic gear design is required-you'll learn from the ground up.
Description
This course is a comprehensive, hands-on guide to the design, simulation, and analysis of magnetic gearboxes using ANSYS Maxwell. Whether you're an engineer, researcher, graduate student, or simply someone passionate about advanced electromagnetic systems, this course will equip you with both the theoretical background and the practical skills needed to learn how to design and analyze magnetic gear systems.You'll explore the complete design workflow for internal, external, and coaxial magnetic gears. Unlike conventional mechanical gears, magnetic gears operate without physical contact-relying entirely on magnetic fields to transmit torque. This contactless mechanism eliminates friction, minimizes maintenance, and enables quieter, more efficient systems. As a result, magnetic gears are now a leading solution for modern applications like electric vehicles, wind turbines, aerospace systems, medical devices, and robotics.In this course, you will:Understand the physical principles and performance benefits of magnetic gearboxes.Create detailed 2D and 3D models using ANSYS Maxwell.Define pole pairs, gear ratios, magnetization directions, and modulator structures.Assign materials and configure moving parts with rotational motion.Simulate magnetic flux, field strength, torque, and optimize gear geometry.This course will be continuously updated to reflect the latest research, tools, and innovations in magnetic gear technology-so you can stay ahead of the curve in your career or research.
Who this course is for
Electrical and mechanical engineers interested in magnetic gear design.
Researchers and graduate students working on motors, drives, or energy systems.
ANSYS Maxwell users seeking practical magnetic gear simulation skills.
Product designers and R&D engineers in robotics, EVs, or renewable energy.
Educators looking to include magnetic gearing in advanced electromagnetics courses.
Hobbyists and innovators curious about non-contact torque transmission technologies.
Learn How To Design Magnetic Gearbox With Ansys Maxwell
